FL250A-LP2-DIF-33 7Z02787 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: FL250A-LP2-DIF-33
Description: The FL250A-LP2-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 33mm aperture and can measure power from 400mW to 250W contin
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FL250A-LP2-DIF-33 7Z02787 Laser Measurement Sensor Introduction：

The FL250A-LP2-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 33mm aperture and can measure power from 400mW to 250W continuously and energy from 400mJ to 600J. Its high damage threshold LP2 absorber covers the spectral range from 0.4 to 3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

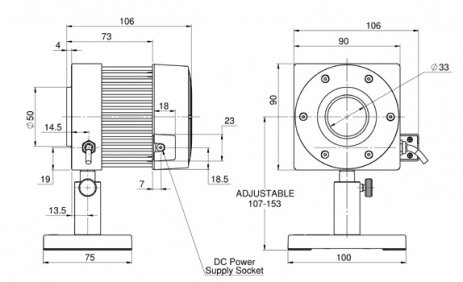

FL250A-LP2-DIF-33 7Z02787 Laser Measurement Sensor Drawing：

FL250A-LP2-DIF-33 Drawing

FL250A-LP2-DIF-33 7Z02787 Laser Measurement Sensor Specification：

Absorber Type	LP2 + diffuser
Aperture	?33mm
Spectral Range	0.4-3μm
Power Range	400mW-250W
Energy Range	400mJ-600J
Backscattered Power	N.A.
Dimensions	90 L x 90 W x 106 D (mm)
Max Pulse Energy	600J
Max Average Power Density	2kW/cm2
Response Time	2.5 s
Max Energy Density (for <100ns)	0.5J/cm2
Max Energy Density (for 2ms)	400J/cm2
Max Average Power	250W
BeamTrack Functions	N.A.
