50(150)A-BB-26 P/N7Z07123 Laser Measurement Sensor

Updated:2023-05-19

Brand: Ophir
Model: 50(150)A-BB-26
Description: The 50(150)A-BB-26 is a general purpose thermal power/energy laser measurement sensor with a 26mm aperture. It can measure from 40mW to 50W continuously and to 150W intermittently. It can measure ener
Data download

Feedback
WeChat

QQ

Online Service

Product Details

50(150)A-BB-26 P/N7Z07123 Laser Measurement Sensor Introduction：

The 50(150)A-BB-26 is a general purpose thermal power/energy laser measurement sensor with a 26mm aperture. It can measure from 40mW to 50W continuously and to 150W intermittently. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

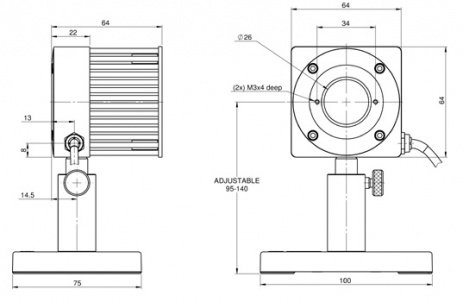

50(150)A-BB-26 P/N7Z07123 Laser Measurement Sensor Drawing：

50(150)A-BB-26 Drawing

50(150)A-BB-26 P/N7Z07123 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	?26mm
Spectral Range	0.19-11μm
Power Range	40mW-150W
Energy Range	20mJ-100J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 64 D (mm)
Max Pulse Energy	100J
Max Average Power Density	12kW/cm2
Response Time	1.5 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	150W
BeamTrack Functions	N.A.
